Relay Automatic Helium Inspection Line IEC 60068-2-17 Standard Helium Leakage Rate ≤1×10⁻⁹ Pa·M³/S Automated Inspection Efficiency ≥ 98%

Name: Relay Automatic Helium Inspection Line IEC 60068-2-17 Standard Helium Leakage Rate ≤1×10⁻⁹ Pa·M³/S Automated Inspection Efficiency ≥ 98%
Brand: Guangzhou HongCe Equipment Co., Ltd.
SKU: HJ190
Price: 5,000.00 USD
Availability: InStock

Merknaam:	Hejin
Modelnummer:	HJ190
MOQ:	1 set
Prijs:	Onderhandelbaar
Betalingsvoorwaarden:	L/C, T/T
Toeleveringsvermogen:	10 sets per month

Gedetailleerde informatie

Productomschrijving

Gedetailleerde informatie

Place of Origin:

china

Certificering:

Calibration certificate(cost additional)

Packaging Details:

Plywood

Productomschrijving

Relay Automatic Helium Inspection Line IEC 60068-2-17 Standard Helium Leakage Rate ≤1×10⁻⁹ Pa·M³/S Automated Inspection Efficiency ≥ 98%

Product Description

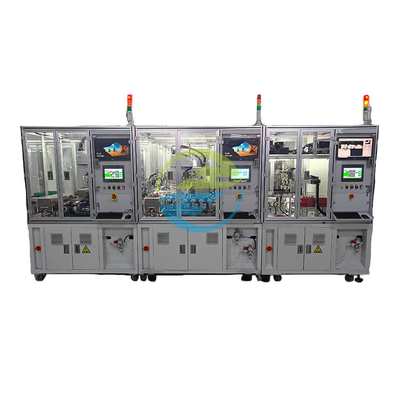

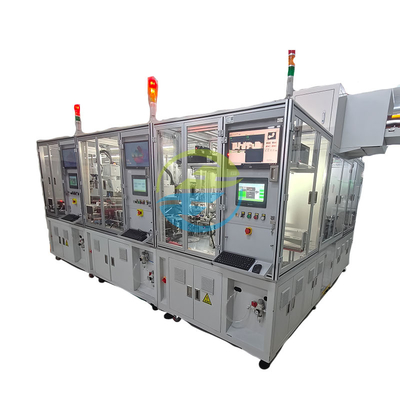

The HJ190 Relay Test Bench is a high-precision, fully automated helium leak detection system designed for high-volume relay production testing. It utilizes advanced mass spectrometry helium testing technology to ensure that every relay meets stringent sealing and safety standards before shipment.

Product Applications
This equipment is widely used in automotive electronics, rail transportation, power control, aerospace, and other fields. It is ideal for testing the leak tightness of relays, sensors, and other precision components, ensuring long-term stable operation in extreme environments such as high humidity, low temperature, and high pressure.

Product Highlights
High-Speed Testing: Fully automated assembly line operation, single-station testing time ≤ 6 seconds, significantly improving production capacity.
High Sensitivity: Detection limit reaches 1×10⁻⁹ Pa·m³/s, accurately identifying even the smallest leaks.
Intelligent Management: PLC control + industrial touchscreen operation, supporting independent control and data traceability for multiple stations.
Modular Design: Easy upgrade and maintenance, with customized testing parameters.
Energy-Saving and Environmentally Friendly: Helium recovery rate reaches up to 95%, reducing operating costs.

International Reference Standards

Standard No.	Standard Name	Applicable Clauses	Description
IEC 60068-2-17	Environmental Testing – Part 2-17: Tests – Test Q: Sealing	Clause 6~8	Specifies helium leak test methods and performance requirements
ISO 20485	Non-destructive Testing – Helium Mass Spectrometer Leak Detection Method	Clause 4~7	Standards for helium test sensitivity and test methods
MIL-STD-883	Test Method Standard – Microcircuits	Method 1014	Requirements for hermeticity testing
ASTM E498/E499	Standard Test Method for Mass Spectrometer Leak Detection	Clause 5~6	Defines calibration and testing methods for helium leak detection equipment

Technical Parameters

Item	Specification
Model	HJ190
Detection Method	Mass spectrometer helium leak detection
Detection Range	1×10⁻⁹ ~ 1×10⁻³ Pa·m³/s
Single Station Test Time	≤ 6 seconds
Production Efficiency	≥ 98% detection efficiency
Number of Stations	6~12 stations optional
Helium Recovery Rate	≥ 95%
Control System	Siemens PLC + industrial touch screen
Data Management	Automatic storage of test records, supports Excel export
Power Supply	AC 220V / 50Hz
Air Supply Pressure	0.5 ~ 0.7 MPa
Dimensions	Customized as required
Weight	Approx. 1500 kg
